8.14 Placement - Publisher Mirrored

This rule places objects in the Identity Vault by using the mirrored structure in the data store from a specified point. Implement the rule on the Placement policy in the driver. You can implement the rule only on the Publisher channel.

There are two steps involved in using the predefined rules: creating a policy in the Placement policy set and importing the predefined rule. If you already have a Placement policy that you want to add this rule to, skip to Importing the Predefined Rule.

8.14.1 Creating a Policy

  1. From the Outline view or the Policy Flow view, select the Publisher channel.

  2. Select the Placement policy set in the policy set, then click Create or add a new policy to the Policy Set icon Create or Add a New Policy icon to create a new policy.

  3. Click Create a new policy, then click Next.

  4. Name the policy.

  5. Use the default location or browse and select another location to place the policy in the driver.

    Create Policy Wizard

  6. Select Open Editor after creating policy, then click Next.

  7. Select DirXML Script for the type of policy, then click Finish.

  8. A file conflict window appears with the message “ Before editing this item you need to save. Do you wish to save the editor’s changes and continue?” Click Yes. The Policy Builder is launched and the new Placement policy is saved.

  9. Continue with Section 8.14.2, Importing the Predefined Rule.

8.14.2 Importing the Predefined Rule

  1. Right-click in the Policy Builder, then click New > Predefined Rule > Insert Predefined Rule Before or Insert Predefined Rule After.

  2. Select Placement - Publisher Mirrored, then click OK.

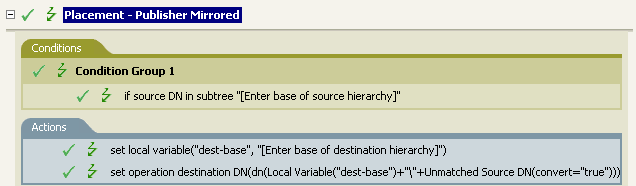

    Placement - Publisher Mirrored

  3. Edit the condition by double-clicking the Conditions tab.

  4. Delete [Enter base of source hierarchy] from the Value field.

  5. Browse to and select the container in the source hierarchy where you want the object to be acted upon, then click OK.

  6. Edit the action by double-clicking the Actions tab.

  7. Delete [Enter base of destination hierarchy] from the Enter String field.

  8. Click the Edit Arguments icon Edit Argument icon to launch the Argument Builder.

  9. Select Text in the Noun list.

  10. Double-click Text to add it to the argument.

  11. In the Editor, click the browse button, browse to and select the container in the destination hierarchy where you want the object to be placed, then click OK.

  12. Click OK.

  13. Save the rule by clicking File > Save.

8.14.3 How the Rule Works

If the User object resides in the source hierarchy, the object is placed in the mirrored structure from the data store. The placement starts at the point that the local variable dest-base is defined. It places the User object in the location of dest-base\unmatched source DN. The rule uses the slash format.
