49.6 Using Internet Agent Log Files

You can use the Internet Agent logging options to help you monitor its operation. By default, the Internet Agent logs information to its server console, Web console, and to a log file on disk. You can control the following logging features:

You can control logging through ConsoleOne, Internet Agent startup switches, and the Internet Agent console. The following table shows which logging options you can control from each location.

Table 49-1 Logging Options



ConsoleOne

Startup Switches

NetWare Console

Linux Console

Windows Console

Logging Level

Yes

Yes

Yes

Yes

Yes

Disk Logging

No

No

No

Yes

Yes

Maximum Log File Age

Yes

Yes

No

Yes

Yes

Maximum Disk Space

Yes

Yes

No

Yes

Yes

Log File Location

Yes

Yes

No

No

No

The log settings in ConsoleOne are used as the default settings. Startup switches override the ConsoleOne log settings, and console settings override startup switches.

49.6.1 Modifying Log Settings in ConsoleOne

Through ConsoleOne, you can configure the following log settings:

  • Log file location

  • Logging level (applies to both console logging and disk logging)

  • Maximum age for log files

  • Maximum disk spaced used for log files

The ConsoleOne settings are the default settings. The Internet Agent uses these settings unless you override them with startup switches in the gwia.cfg startup file or at the server console.

To configure the default log settings in ConsoleOne:

  1. Right-click the Internet Agent object, then click Properties.

  2. Click GroupWise > Log Settings to display the Log Settings page.

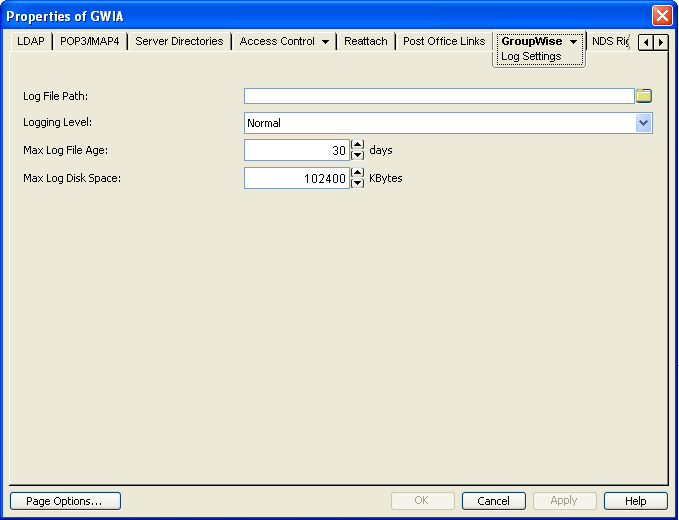

    Log Settings property page

  3. Modify any of the following properties:

    Log File Path: The Internet Agent creates a new log file each day and each time it is started. The log file is named mmddgwia.nnn, where mm is the month, dd is the day, and nnn is a sequenced number (001 for the first log file of the day, 002 for the second, and so forth). The default location of the log files depends on the platform where the Internet Agent is running.

    NetWare and Windows:

    domain\wpgate\gwia\000.prc

    Linux:

    /var/log/novell/groupwise/domain_name.gwia

    If you want to specify a different location, enter the directory path or browse to and select the directory.

    Logging Level: There are four logging levels:

    • Off: Disables the logging function.

    • Normal: Displays warnings and error messages. This is the preferred logging level.

    • Verbose: Displays information about traffic, including non-delivery reports, in addition to warnings and error messages. Information includes the filename, path, message ID, and size of the message being processed; the IP address of any inbound SMTP connections; the Internet Agent-specific MSG number; and SMTP connection messages such as “Connect to novell.com” and “Accepted connection from 172.16.5.18 novell.com”.

    • Diagnostic: Displays detailed function calls made by the Internet Agent. This level is not useful for most troubleshooting. Verbose is better for standard troubleshooting.

    The Verbose and Diagnostic logging levels do not degrade Internet Agent performance, but log files saved to disk consume more disk space when Verbose or Diagnostic logging is in use.

    Max Log File Age: Specify the number of days you want the Internet Agent to retain old log files. The Internet Agent retains the log file for the specified number of days unless the maximum disk space for the log files is exceeded. The default age is 30 days.

    Max Log Disk Space: Specify the maximum amount of disk space you want to use for log files. If the disk space limit is exceeded, the Internet Agent deletes log files, beginning with the oldest file, until the limit is no longer exceeded. The default disk space is 102400 KB (100 MB).

  4. Click OK to save the log settings.

49.6.2 Modifying Log Settings through Startup Switches

You can use startup switches to override any log settings you configured in ConsoleOne. as described in Section 49.6.1, Modifying Log Settings in ConsoleOne. Edit the gwia.cfg file to change switch settings, as described in Section 52.1.2, Modifying the gwia.cfg File.

For information about the startup switches that can be used to modify log settings, see Section 52.12, Log File Switches.

49.6.3 Modifying Log Settings through the Internet Agent Server Console

NetWare Internet Agent Server Console

You can use the NetWare Internet Agent console to set the logging level for the current session.

Changes you make to logging level at the console apply only to the current session. When you restart the Internet Agent, the logging level is reset to the settings specified in ConsoleOne or the startup switches. See Section 49.6.1, Modifying Log Settings in ConsoleOne and Section 49.6.2, Modifying Log Settings through Startup Switches.

To modify the logging level:

  1. At the NetWare Internet Agent’s console, press F10-Options, then press F2-Log Level repeatedly to toggle among the available log levels:

    • Off: Disables the logging function.

    • Normal: Displays warnings and error messages. This is the preferred logging level.

    • Verbose: Displays information about traffic, including non-delivery reports, in addition to warnings and error messages. Information includes the filename, path, message ID, and size of the message being processed; the IP address of any inbound SMTP connections; the Internet Agent-specific MSG number; and SMTP connection messages such as “Connect to novell.com” and “Accepted connection from 172.16.5.18 novell.com”.

    • Diag: Displays detailed function calls made by the Internet Agent. This level is not useful for most troubleshooting. Verbose is better for standard troubleshooting.

  2. Press F1-Exit Options to return to the main console screen.

Linux or Windows Internet Agent Server Console

You can use the Windows Internet Agent console to override the following log settings for the current sessions:

  • Disk logging on/off

  • Log file location

  • Logging level (applies to both console logging and disk logging)

  • Maximum age for log files

  • Maximum disk spaced used for log files

Changes you make to the log settings at the console apply only to the current session. When you restart the Internet Agent, the log level is reset to the level specified in ConsoleOne or the startup switches. See Section 49.6.1, Modifying Log Settings in ConsoleOne and Section 49.6.2, Modifying Log Settings through Startup Switches.

To modify the log settings:

  1. In the Windows Internet Agent console, click Log > Log Settings to display the Log Settings dialog box.

    Log Settings dialog box in the Windows Internet Agent console

  2. Change the desired settings:

    • Log Level: Select Normal to display warnings and error messages; this is the preferred logging level. Select Verbose to display information about traffic, including non-delivery reports, in addition to warnings and error messages. Information includes the filename, path, message ID, and size of the message being processed; the IP address of any inbound SMTP connections; the Internet Agent-specific MSG number; and SMTP connection messages such as “Connect to novell.com” and “Accepted connection from 172.16.5.18 novell.com”. Select Diagnostic to display a detailed trace of gateway messages, errors, and operations that can be useful for troubleshooting.

    • Disk Logging: Select On or Off to enable or disable logging of information to log files.

    • Maximum Log File Age: Specify the number of days you want the Internet Agent to retain old log files. The Internet Agent retains the log file for the specified number of days unless the maximum disk space for the log files is exceeded. The default age is 30 days.

    • Maximum Log Disk Space: Specify the maximum amount of disk space you want to use for log files. If the disk space limit is exceeded, the Internet Agent deletes log files, beginning with the oldest file, until the limit is no longer exceeded. The default disk space is 102400 KB (100 MB).

49.6.4 Viewing Log Files

You can view the log file for the current session, or you can view archived log files. The current log file is viewable through the Internet Agent console, as described in Section 49.1, Using the Internet Agent Server Console, or in the Internet Agent Web console, as described in Section 49.2, Using the Internet Agent Web Console. Archived files are viewable through the consoles or an ASCII text editor.

Current Log File

The current log file is displayed in the Logging window of the Internet Agent console, with only the most current operations visible. The log file is complete, and includes the gateway startup and configuration information and ongoing operations logged by time, including the shutdown operation. You can browse the file from top to bottom or perform a search for any text string you want. You can also view the current log file from the Internet Agent Web console.

Archived Log Files

The Internet Agent creates a new log file every day at midnight or every time it restarts. Older log files are not deleted for at least one day unless you have not allowed sufficient disk space for them to be archived.

Log files are named according to the date they were created. If the Internet Agent was restarted during the day, the file extension indicates which session is logged (for example 0518log.003 indicates the third session logged for May 18).

Archived log files are saved in ASCII. You can use any text editor to open a file or to print it. You can also view the log files from the Internet Agent console or the Internet Agent Web console.
