19.4 Accessing the Version Control View

You access version control functionality by using the Version Control view.

Figure 19-2 The Version Control View

The Version Control view does the following:

The Version Control view is the main interface with version control. You find most of the version control operations and information in this view. This view is empty until you import from or check in a project to the version control server.

The Version Control view automatically displays when you import an existing project from a version control server or check in a project to a version control server. To open the view manually, select Window > Show Views > Version Control.

19.4.1 Version Control Icons

The Version Control view contains seven icons that allow you to interact with version control. Six icons are to the right of the Version Control tab. They are the Filter icon , the Refresh icon , Expand All and Collapse All , and the Minimize and Maximize icons . The seventh icon is the Version Control Project Status icon , which is located in the bottom right corner of Designer.

Figure 19-3 Details in the Version Control View

Filter Icon: Use the Filter icon to limit the number of projects that are displayed in the Version Control view. Click the Filter icon, then select the projects you want to filter out of the Version Control view.

Figure 19-4 Version Control Filter Page

Refresh Icon: Click the Refresh icon to refresh the Version Control view. Designer communicates with the Subversion server and refreshes the Version Control view with any updates performed by other users who are modifying the same projects.

Expand All/Collapes All Icons: Click the Expand All icon to expand all items in the Version Control view. Click the Collapse All icon to collapse all items in the Version Control view.

Minimize/Maximize Icons: Click the Minimize icon to minimize the Version Control view. Click the Maximize icon to maximize the Version Control view.

Version Control Project Status Icon: Mouse over the Version Control Project Status icon to see the status of the objects in the Version Control view. The Version Control Project Status icon gives you a quick status for version control and works like a traffic light. You can move this icon to a different location in Designer to suit your preferences.

Table 19-1 The Version Control Project Status Icon Colors and Description

Icon Status

Status Description

Green. Everything is up-to-date.

Yellow. Updates are available from the version control server.

Red. There are conflicts between the local version and the version control server.

Grey. Designer is unable to contact the version control server.

19.4.2 Version Control View Headings

The Version Control view has four headings: Object, Status, Date, and User.

Object: This column displays the objects that are connected to the project that is stored on the version control server. Right-click an object in the Version Control view to display the available options. These options are covered in Section 19.4.3, Version Control Options.

Status: This column displays the current state for objects in a project, as indicated by the following icons:

Table 19-2 Status Icons

Status Icon

Description

(none)

This object is up-to-date, with no new revisions available.

Unversioned. This object has not been added to the version control server.

Deleted. This object has been deleted from the version control server.

Updates with Merge. This object has updates that might conflict with the changes you have made (see Section 19.5, Comparing Revisions and Resolving Conflicts).

The project object has been updated from an older version selected from the Revision History page. The object changes back to normal when you update (see History).

This object has new child objects available.

This object has new updates available.

This object has been modified locally.

Date: This column shows the date when the last changes to the objects in the Version Control view occurred. The date and time change when you modify an object and commit those changes to the version control server.

User: Displays the name of the last person who has updated the object.

19.4.3 Version Control Options

Right-click an object in the Version Control view to display the available options.

Figure 19-5 Available Version Control Options

The options affect the object selected, as well as any child objects that correspond to the selected object. For example, performing a Revert on the project object affects the entire project, but performing a Revert on the Subscriber channel of a Lotus Notes driver only affects the Subscriber channel and any objects (such as policies) that depend on the Subscriber channel.

Clean Up

Use the Clean Up option only when you are prompted to. Sometimes a project is in a “locked” state; at this point, version control requires you to run Clean Up before it lets you do anything else with the project, and you receive a message telling you to run the Clean Up option.

Commit

Use the Commit option to have your local changes checked into the version control server for the object you have selected.

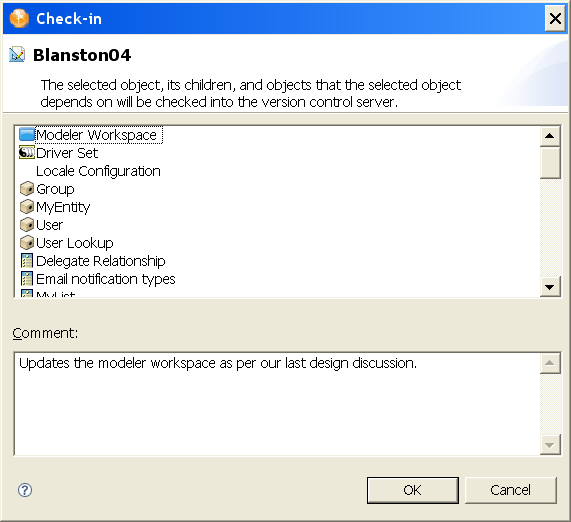

Figure 19-6 Checking In an Object to the Version Control Server

Once you click OK, the check-in is committed to the version control server. Click OK to close the Commit screen.

There are also Check-in capabilities in the Project and the Outline view (right-click a project and select Check In), and an Check In icon in the main toolbar .

Get Updates

Use the Get Updates option to get the latest version of the selected object from the version control server.

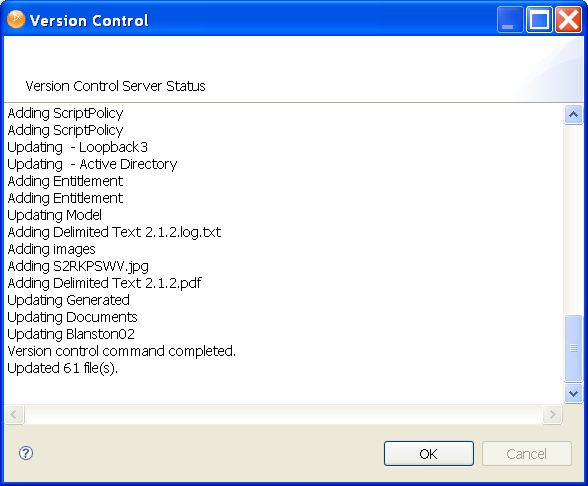

Figure 19-7 Receiving Updates from the Version Control Server

If you have more than one project open that is checked in to the version control server, select which project you want to update from the Update page, then click OK to begin the update. If there are conflicts between your local version and the version control server, you see the Conflict Resolution page, which includes a method to resolve those conflicts. For more details, see Section 19.5, Comparing Revisions and Resolving Conflicts.

There are also Update capabilities in the Project and the Outline view (right-click a project and select Update), and an Update icon in the main toolbar .

Revert

Use the Revert option to return the selected object to the version you last checked out from the version control server. This allows you to cancel your recent changes; you see a message screen displayed, confirming your choice to revert. You can also use this option to restore files that you have deleted since the last time you checked in. Revert will not affect files in your project that have not been checked in to the version control server.

WARNING:By using this option, you lose any changes you have made since the last time you checked it in.

Delete

Use the Delete option to delete a project from the version control server. This option is only available for project objects. Although you can delete objects within a project from other views in Designer, you can remove the entire project only through the Version Control view. Selecting the Delete option immediately deletes the selected project, and you are prompted for a comment for your actions.

History

Use the History option to view the revision history of an object and all the changes that have been made to that object. You can also use this option to select an earlier version of a project.

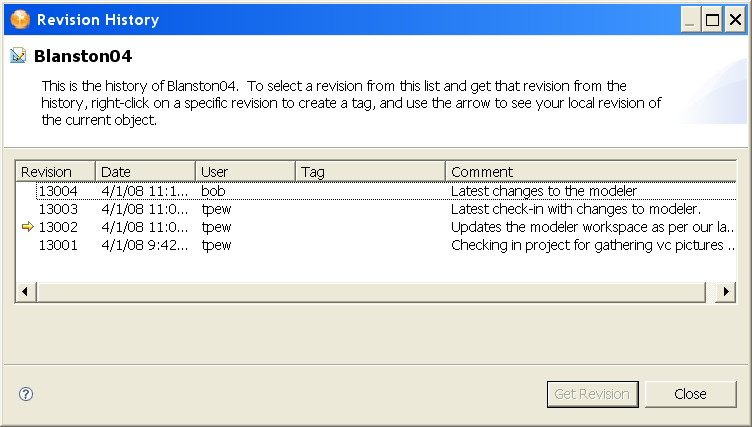

Figure 19-8 Revision History in the Version Control View

You can use Revision History page to see who made a change, when the change was made, the tag name (if it is filled out), and the comment provided for the change. The yellow arrow indicates your currently loaded version.

Version numbering of projects and how numbering works with the objects in a project is a very complex issue. For more information on how revision numbering works in Subversion, see Section E.1.1, How Revisions Work In Subversion.

The Revision History Page For a Project

You have more options when you right-click a project object in version control and then select History.

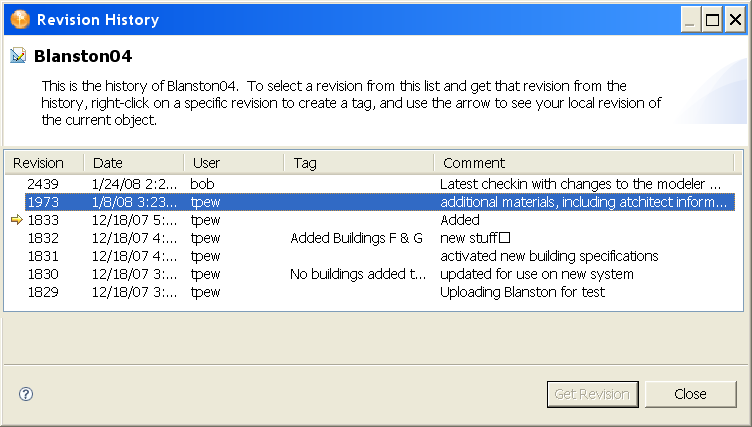

Figure 19-9 Revision History of Projects

If you select History for a project object, the Revision History page allows you to select a version of a project object from the list of revisions. You can then view the contents of earlier versions and bring those versions up-to-date with your latest revision.

Get Revision

Select the revision for the project you want to work with, then click Get Revision. Answer Yes to save all of the editors in this project. That version of the selected object is downloaded from the version control server and becomes the version of the project you are working on.

If you select an older version of a project, the project has a special status icon in the Version Control view. This icon indicates that your project came from history instead of being out-of-date, but its status returns to normal after you select Update.

If you make changes to the historical version and select Update, you are presented with a Revert Local Changes page, allowing you to keep your local changes or to revert your local changes.

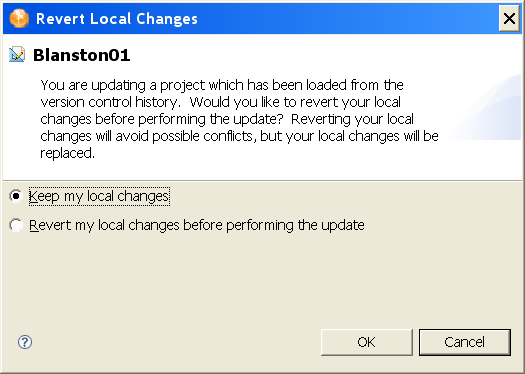

Figure 19-10 Reverting Local Changes

If you have made deliberate changes and want to now save those changes to the version control server, select Keep my local changes (default). If you made inadvertant changes to the project, or if you just wanted to see what was in this historical version, select Revert my local changes before performing the update.

Creating a Tag for a Project

If you select a project object, you can create a tag for any of the revisions listed in the Revision History page. This allows you to give a revision project a more memorable name instead of a revision number. To create a tag, right-click a revision and select Create Tag. This brings up the Tag for Revision page.

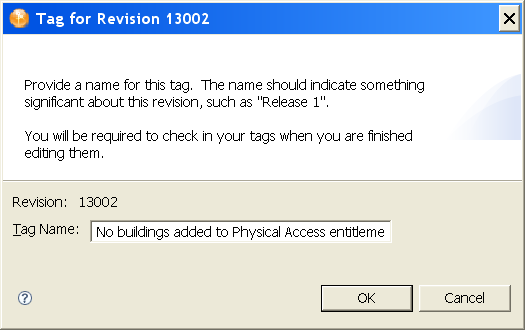

Figure 19-11 Adding a Tag To a Selected Revision

Provide a tag name that is significant to this version of the object and click OK. The tag name is added under the Tag heading in the Revision History page. When you close the Revision History page, you are asked to add a comment to all of the tag names that you have added.

Comparing Versions

See Comparing Revisions.

Properties

Use the Properties option to view the properties of an object that has been added to version control.

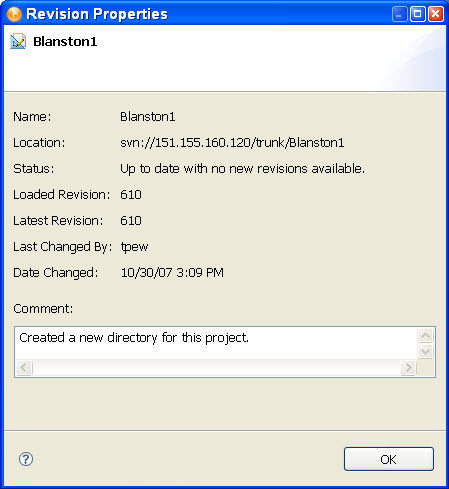

Figure 19-12 Object Properties Page

Important information includes the location of the object on the version control server, the loaded revision number, the latest revision number, and any comment concerning the most recent check-in. You cannot make changes to this information.
