Novell Filr 1.0.2 Desktop Application for Windows Quick Start

April 2014

Novell Filr allows you to easily access all your files and folders from your desktop, browser, or a mobile device. In addition, you can promote collaboration around your files by sharing files and folders with others. For more general information about Novell Filr, see About Novell Filr in the Filr Web Application User Guide.

This Quick Start describes how to use Filr from your desktop.

In addition to accessing Filr from your desktop, you can also access it in the following ways:

You can synchronize your Novell Filr files with your computer, and then modify the files without accessing the Filr site directly. Additions, modifications, and other actions are synchronized between Filr and your computer.

Your Filr administrator must enable the Filr desktop application to be used with the Filr site before it can be used as described here. For information about how administrators can enable this functionality, see Configuring the Filr Desktop Application to Access Files in theNovell Filr 1.0.1 Administration Guide.

1.0 Supported Environments

The Filr desktop application for Windows is supported on Windows XP and later.

2.0 Synchronization Performance Limits

For optimal performance, the Filr desktop application should not be configured to exceed the following synchronization limits:

Maximum Number of Total Synchronized Files: 10,000

Maximum Size Per Individual File: 1 GB

For information about how to configure files to synchronize, see Configuring Folders to Synchronize.

3.0 Getting Started

3.1 Understanding Synchronization

When Synchronization Occurs

Synchronization from the Filr desktop application to the Filr server occurs immediately when changes are made; synchronization from the Filr server to the Filr desktop application occurs at an interval designated by your Filr administrator. The default is every 15 minutes. If the server becomes unavailable, the desktop client attempts to contact the server every minute until a connection is re-established.

You can manually synchronize files if you do not want to wait for the scheduled synchronization. For more information, see Manually Synchronizing Files.

Which Folders Are Synchronized

Filr synchronizes files to your workstation when the files are located in the following locations in Filr:

My Files: Files that are located in your My Files area on the Filr site are synchronized to your workstation by default. When you add files to the My Files folder from your workstation (C:\Users\userid\Filr\My Files/), the files are automatically synchronized to Filr at the next synchronization.

Shared with Me: Files that are located in your Shared with Me area on the Filr site are synchronized to your workstation by default. You can edit files in your Shared with Me area and the edits are synchronized to Filr. However, you cannot add files to the root of the Shared with Me folder from the Filr desktop application on your workstation (C:\Users\userid\Filr\Shared with Me/). If you do, the files are not synchronized to Filr. You can add files to folders that have been shared with you, if you have Contributor rights to the folder.

Net Folders: Files that are located in Net Folders are not synchronized to your workstation by default. You can configure Net Folders to be synchronized, as described in Configuring Folders to Synchronize.

Files located at the root of the C:\Users\userid\Filr folder cannot be synchronized. Instead, add files to one of the appropriate subfolders (My Files or Net Folders; you cannot add files to the Shared with Me folder).

What Actions Are Supported

When you perform any of the following actions on folders and documents within the Filr folder on your file system, the action is immediately synchronized from your computer’s file system to the Filr server:

  • Create documents and folders

  • Modify documents

  • Move documents

  • Rename documents and folders

  • Delete documents and folders

    Documents and folders that you delete from the Filr desktop application are also deleted on the server, as long as you have rights to delete it. However, this is not always true when deleting documents from the Shared with Me area.

    If you delete a document or folder from the Shared with Me area, and that document or folder has been directly shared with you, it is no longer synchronized to the Filr desktop application, and the documents and folders remain on the server.

    If you delete a document or folder that is a subfolder of a folder that was shared with you, or if the document is located in a folder that was shared with you, the document or folder is deleted, if you have sufficient rights to delete it.

3.2 Downloading and Installing the Filr Desktop Application

  1. On your workstation, access the Filr Web client from a browser.

    For information about how to start Novell Filr from a browser, see Accessing Novell Filr from a Web Browser in the Novell Filr 1.0.1 Web Application User Guide.

  2. Click your linked name in the upper-right corner of the page, then click Download Filr Desktop App.

  3. Click either the Windows x86 Client link or the Windows x64 Client link to download the application appropriate for your operating system.

  4. After the download finishes, open the NovellFilrSetup-x86.exe file or NovellFilrSetup-x64.exefile, depending on whether you have a 32-bit or 64-bit operating system.

    You must have Administrator privileges on the workstation to run the file.

    If you do not have the Microsoft .NET Framework 4 or later already installed on your workstation, you are prompted to accept a license agreement and install it. (Installing Microsoft .NET Framework requires that you reboot your computer.)

    If you do not have the Microsoft Visual C++ 2013 Redistributable Package installed on your workstation, you are prompted to accept a license agreement and install it.

    In order to view the Filr properties of a file or folder (as described in Viewing Filr Properties for a File or Folder), you must have the Microsoft .NET Framework 4.5 and Microsoft Visual C++ 2013 Redistributable Package installed on your workstation. If .NET Framework 4 is already installed on your workstation when you install the Filr 1.0.2 desktop application, you must install .NET Framework 4.5 separately.

    Microsoft .NET Framework 4.5 is not supported on Windows XP.

    All other functionality associated with the Filr desktop application is available with .NET Framework 4.

  5. Click Next.

  6. Accept the license agreement, then click Next.

  7. Change the installation location for the Filr desktop application, or simply click Next to accept the default location.

  8. Click Install.

  9. Click Finish when the installation is complete, then continue with Configuring the Filr Desktop Application for the First Time.

3.3 Configuring the Filr Desktop Application for the First Time

After you have downloaded and installed the Filr desktop application for the first time, as described in Downloading and Installing the Filr Desktop Application, you are prompted to configure it. This process includes entering account information, choosing which folders to synchronize, and choosing where to store information on your computer’s file system.

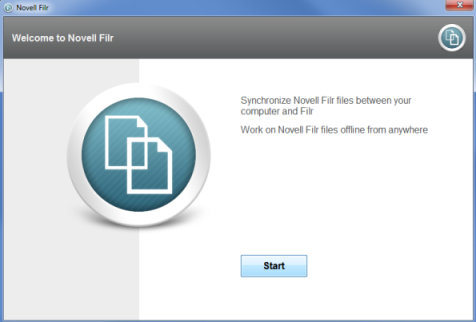

  1. Click Start to begin setting up the Filr desktop application.

  2. In the Account Information section, specify the following information:

    Server URL: Specify the URL for the Filr site where you want to synchronize files to your computer. For example, https://Filr.mycompany.com.

    Depending on how your Filr system is set up, you might have to enter the port number. For example, https://Filr.mycompany.com:8443.

    Username: Specify the Filr username that you use to log in to the Filr site.

    Password: Specify the Filr password that you use to log in to the Filr site.

    Remember password: Select this option to have the Filr desktop application remember your password. (This option can be disabled by your Filr administrator.)

  3. Click Next.

  4. In the Synchronized Folders section, notice that files in your My Files and Shared with Me folders are synchronized by default.

  5. (Optional) If you want to synchronize specific Net Folders:

    1. Click Add in the Synchronized Folders section, then click the Net Folders tab.

    2. Navigate to and click the Download icon next to the Net Folders that you want to synchronize, then click OK.

  6. (Optional) If you want to stop synchronizing files in your My Files or Shared with Me areas:

    1. Click Add in the Synchronized Folders section, then click the My Files or Shared with Me tab.

    2. Click the Synchronized icon at the column heading to stop synchronizing all files and folders in the My Files or Shared with Me areas. You can then click the Download icon next to specific folders that you want to synchronize.

      The Synchronized icon indicates that files are being synchronized.

      The Download icon is displayed to indicate that files in your My Files or Shared with Me areas are no longer being synchronized.

    3. Click OK.

  7. Click Next.

  8. In the General Settings section, specify the following information:

    Filr Folder: Click Browse if you want to change the installation location for the Filr desktop application; or simply keep the default location.

    Start Novell Filr at login: Keep this option selected to have the Filr desktop application start when you turn on your workstation.

  9. Click Next to review your selections, then click Finish.

    The Filr desktop application is now running, and the Filr icon is visible in the notification area.

4.0 Configuring Folders to Synchronize

When you first configure the Filr desktop application, you can choose which folders you want to synchronize. My Files and Shared with Me are synchronized by default; Net Folders must be manually configured to synchronize. You can configure folders to be synchronized during the initial configuration or any time after the initial configuration.

You must have appropriate View rights on a Net Folder in order to synchronize it.

For optimal performance, the Filr desktop application should not be configured to exceed the synchronization limits. For information about synchronization limits, see Synchronization Performance Limits.

To configure Net Folders in Filr to be synchronized to your computer:

  1. Right-click the Filr icon in the notification area, then click Open Filr console.

  2. Click Synchronized Folders to display the folders that are currently being synchronized.

  3. Click Add.

    The Add Novell Filr Folders dialog box is displayed.

  4. Select the My Files, Shared with Me, or Net Folders tab, depending on the location of the folder that you want to synchronize.

  5. (Optional) Click a folder name to navigate to subfolders.

  6. Click the Download icon next to the folder that you want to synchronize.

    or

    Click the Download icon at the top of the folder list to synchronize all folders.

    When you select a folder to synchronize, subfolders are also synchronized.

    The Filr administrator must enable Net Folders to be synchronized to the Filr desktop application. If the administrator has not enabled a Net Folder to be synchronized, a red icon is displayed next to the folder and you cannot synchronize it.

    Files in a Net Folder might not synchronize immediately, depending on the way your Filr administrator implemented file synchronization. If there are files in a Net Folder that are not synchronized, try accessing those files first from the Filr Web application or the Filr mobile app. If files still fail to synchronize to the Filr desktop application, contact your Filr administrator.

  7. Repeat Step 4 through Step 6 to synchronize additional folders in your My Files, Shared with Me, or Net Folders locations.

  8. (Optional) Click the Synchronized icon next to any folder that you want to stop synchronizing.

    You cannot stop synchronizing a subfolder if the parent folder is being synchronized; you must stop synchronizing the parent folder.

    or

    Click the Synchronized icon at the top of the folder list to stop synchronizing all folders.

  9. Click OK.

    The folders that you have selected to be synchronized are listed on the Synchronized Folders page. The size of the folder is displayed next to the folder, in the Size column.

  10. Ensure that you want to synchronize the folders that are listed, then click Apply.

    If you have selected a folder that is over 500 MB, you are warned before proceeding.

5.0 Viewing Filr Files from Your Computer

  1. Double-click the Filr icon in the notification area.

    or

    Right-click the Filr icon in the notification area, then click Open Filr folder.

You can access the Filr folder directly from your file system. The Filr folder is typically in the following location, depending on your operating system:

  • Windows 8, 7, or Vista: c:\Users\username\Filr

  • Windows XP: c:\Documents and Settings\username\My Documents\Filr

On Windows Vista, the Filr folder is also located in your Favorites.

On Windows 7 and 8, the Filr folder is also located in your Favorites and in your Libraries.

For information on how to change the default location, see Changing the Location on Your File System Where Filr Files Are Synchronized.

For specific information about file synchronization between your workstation and Filr, see Understanding Synchronization.

6.0 Manually Synchronizing Files

You can manually synchronize files between Filr and your computer if you do not want to wait for the scheduled synchronization. Files must be closed before they can be synchronized.

To manually synchronize all your files:

  1. Right-click the Filr icon in the notification area, then click Synchronize now.

To manually synchronize an individual file:

  1. Navigate to the file that you want to synchronize.

  2. Right-click the file, then click Synchronize now.

7.0 Launching Filr in a Browser from Filr Desktop

You can launch Novell Filr in a browser by using the Filr desktop application.

  1. Right-click the Filricon in the notification area, then click Visit Filr on the web.

8.0 Commenting on a File and Viewing Comments

  1. Navigate to the file that you want to comment on or view comments for.

  2. Right-click the file, then click Comments.

    The Filr Comments dialog box is displayed, listing all existing comments that are associated with the file.

  3. In the comment field, specify your comment, then click Send.

    or

    To reply to an existing comment, click the Reply icon next to the comment that you want to reply to, then click Send.

9.0 Sharing a File or Folder

  1. Navigate to the file or folder that you want to share.

  2. Right-click the file or folder, then click Share.

    The Filr Share dialog box is displayed.

    If a synchronization is in process or if the address book is being cached, the Filr Share dialog box might not be immediately displayed.

  3. In the Add a User, Group, or Email field, begin typing the name of a user or group that you want to share with, then click the name when it appears in the drop-down list.

    or

    Specify the complete email address of the external user that you want to share with, then press Enter.

  4. (Optional) Repeat Step 3 to share with additional users.

  5. (Conditional) To modify access settings for an individual user:

    1. In the Shared with section, select the user whose access settings you want to modify.

    2. Choose from the following access settings to modify:

      Access: Grant Viewer, Editor, or Contributor access rights. (Contributor applies only to folders.)

      Expires: Specify when the share will expire.

      You can configure the share to expire either after a given number of days (each day is counted as a 24-hour period from the time that you set the expiration) or on a specific day (rights expire at the beginning of the day that you select).

      Internal users: Allow share recipients to re-share the item with internal users.

      External users: Allow share recipients to re-share the item with external users.

      Public: Allow share recipients to re-share the item with the public.

      Note: Include a personal note to share recipients. Only share recipients can read the note.

  6. (Conditional) To modify access settings for multiple users simultaneously:

    1. Hold the Ctrl key and select the users in the Shared with section whose access settings you want to modify.

    2. Choose from the following access settings to modify. (Access settings that you leave undefined retain any individual access settings that are present on a given user. Access settings that you define are modified for each user that is currently selected.)

      Access: Grant Viewer, Editor, or Contributor access rights. (Contributor applies only to folders.)

      Expires: Set a date when the share will expire.

      Internal users: Allow share recipients to re-share the item with internal users.

      External users: Allow share recipients to re-share the item with external users.

      All Public: Allow share recipients to re-share the item with the public.

      Note: Include a personal note to share recipients. Only share recipients can read the note.

  7. (Optional) Click Make Public to make the item publicly available. Then in the Shared with section, tap the All users user that was just added, and set the access control settings for the public.

  8. (Optional) In the Notify section, click the drop-down list and choose from the following notification options:

    None: Send no notifications.

    All recipients: All recipients in the share list are notified.

    Only newly added recipients: Only recipients that you add to the share list are notified.

    New and modified recipients: Only recipients whose share rights you are modifying, as well as new recipients, are notified.

  9. Click Save.

10.0 Viewing Filr Properties for a File or Folder

You can view the following Filr properties that are associated with your files and folders:

  • File name

  • File path (this is the path to the file or folder from within the Filr system)

  • File size (applies to files only, not folders)

  • User who created the file or folder

  • Date the file or folder was created

  • Date the file or folder was modified

  • User who shared the file

  • Users who the file is shared with

To view Filr properties for a file or folder:

  1. Right-click the file or folder for which you want to view the Filr properties.

  2. Click Properties to launch the native Windows properties dialog.

  3. Click the Novell Filr tab.

    The Filr properties for the file or folder are displayed.

  4. (Optional) If you have rights to share the file or folder, you can click Share to launch the Filr Share dialog box.

11.0 Viewing Recent Activity

You can view activity that has recently taken place in the Filr desktop application. For example, you can see the date and time that Filr folders were synchronized, which files were modified, and information about any synchronization issues you might be experiencing.

To view recent activity:

  1. Right-click the Filr icon in the notification area, then click Open Filr console.

  2. Click Recent Activity.

12.0 Viewing System Alerts

The Filr desktop application might need to make you aware of various alerts, such as new software updates, expired passwords, server downtime, and so forth.

When system alerts are available, this information icon flashes over the Filr icon .

To view system alerts:

  1. Right-click the Filr icon in the notification area, then click Open Filr console.

  2. Click System Alerts.

13.0 Changing the Location on Your File System Where Filr Files Are Synchronized

By default, Filr files are synchronized to the c:\Users\username\Filr folder on your file system.

When you first configure the Filr desktop application, you can specify the installation location on your file system. You can change the location of the Filr folder at any time after initial configuration.

NOTE:You should not synchronize files to a location on a network that can be accessed by multiple computers. If the Filr folder is on a network location that is accessed by multiple computers, synchronization issues can occur when Filr files accessed from either computer are out of sync with each other and with the Filr server.

To change the location of the Filr folder:

  1. Ensure that no files from the Filr folder are currently open.

  2. Right-click the Filr icon in the notification area, then click Open Filr console.

  3. Click General Settings, then click Browse to browse to the new location on the file system where you want the Filr folder to reside.

  4. Click OK > Apply.

  5. Click Continue to change the location of the Filr folder.

14.0 Changing Your Filr Account Information for the Filr Desktop Application

When you first configure the Filr desktop application, you specify your account information and Filr server information.

You can change your Filr desktop application account information and Filr server information at any time after the initial configuration:

  1. Right-click the Filr icon in the notification area, then click Open Filr console.

  2. Click Account Information in the Novell Filr Console dialog box.

  3. Specify the following information:

    Account Name: Specify a descriptive name for the Filr account. A folder with this name is created in your user directory in the file system.

    Server URL: Specify the URL for the Filr site where you want to synchronize files to your computer. For example, https://Filr.mycompany.com.

    Depending on how your Filr system is set up, you might have to enter the port number. For example, https://Filr.mycompany.com:8443.

    Username: Specify the Filr username that you use to log in to the Filr site.

    Password: Specify the Filr password that you use to log in to the Filr site.

    Remember password: Select this option to have the Filr desktop application remember your password.

    This option can be disabled by your Filr administrator.

  4. Click Apply.

15.0 Viewing Your Data Quota

Data quotas can be enabled by your Novell Filr administrator in order to limit the amount of data that is stored on the Filr site. For information on how the Filr administrator can enable data quotas, see Managing Disk Space Usage with Data Quotas and File Restrictions in the Novell Filr 1.0.1 Administration Guide.

If data quotas have been enabled on your Filr site, you need to understand what counts toward your data quotas, the different kinds of data quotas that exist, and how you can view the current data usage, so you can know when you are approaching the allotted data quota. If you meet your allotted quota, Filr enables you to purge files and attachments that you have previously deleted.

15.1 Understanding Data Quotas

Data quotas limit the amount of data individual users can add to the Filr site. Files that are located in Net Folders (including your Home directory) do not count toward your data quota.

15.2 Viewing Your Data Quota

Data quotas might or might not be in use on your Filr site. If you are unable to view your data quotas as described in this section, your Filr administrator has not yet restricted the amount of data that can be added to the Filr site.

You can view your data quota directly from the desktop application:

  1. Right-click the Filr icon in the notification area.

  2. Click Open Filr console.

  3. Click Account Information in the Novell Filr Console dialog box.

    Your data quota is displayed with the amount that you have currently used. The max file size is also displayed; this is the largest size of file that you are allowed to upload to the Filr site.

For information about how to manage your data quota from within the Filr Web application, see Managing Your Data Quota in the Novell Filr 1.0.1 Web Application User Guide.

16.0 Understanding and Resolving Synchronization Issues

Most synchronization issues can be resolved through the Pending Actions section of the Filr Console. If issues require further investigation, you can check the desktop logs.

16.1 Understanding Pending Actions

You might encounter any of the following synchronization issues, indicated by one of the following icons:

: There is an upload error.

: There is an upload warning.

: There is a download error.

: There is a download warning.

: There are upload and download errors.

: There are upload and download warnings.

: The client has not yet attempted to upload or download the file.

If you are unsure why a document is not downloading or uploading, view the recent activity, as described in Viewing Recent Activity.

16.2 Resolving Document Conflicts

If a document is edited at the same time from various locations, conflicts can arise.

To resolve document conflicts:

  1. Right-click the Filr icon in the notification area.

  2. Click Open Filr console.

  3. Click Pending Changes.

  4. Next to the conflict that you want to resolve, click Resolve, then choose one of the available options:

    Keep your version: Replaces the file on the Filr server with your version.

    Keep the server version: Discards your file and replaces it with the version on the Filr server.

    Keep both files: The file on the Filr server is saved as the original file, and your version of the file is renamed.

16.3 Viewing Log Files for the Filr Desktop Application

If Filr files are not being downloaded to your workstation as you expect, or if you are experiencing other unexpected behaviors, see the filr.log file for more information.

  1. Open Windows Explorer.

  2. In the Windows Explorer address bar (this is the field at the top of the explorer window that shows you a breadcrumb view to your current location), type or paste the following address:

    %USERPROFILE%\Local Settings\Application Data\Novell\Filr

  3. Open the filr.log file.

    After information in the filr.log file exceeds 1MB, older log information is moved to the filr.log.1, filr.log.2, and filr.log.3 files.

17.0 Uninstalling the Novell Filr Desktop Application

To completely uninstall the Filr desktop application, follow the instructions in the following sections:

17.1 Uninstalling the Filr Desktop Application from the Windows Control Panel

  1. Click the Start icon, then click Control Panel.

  2. Click Programs > Uninstall a program.

  3. Select Novell Filr > Uninstall.

17.2 Deleting the Filr Directory

The location of the Filr directory differs, depending on your operating system:

Windows Vista or Windows 7: UserProfile\AppData\Local\Novell\Filr

Windows XP: UserProfile\Local Settings\Application\Data\Novell\Filr

17.3 Deleting Registry Keys

  1. Click the Start icon, then click Run.

    If Run does not appear, type Run in the Search field, then press Enter.

  2. Type regedit, then click OK.

  3. Delete the following registry keys if they exist:

    • \\HKEY_CURRENT_USER\Software\Novell\Filr

    • \\HKEY_LOCAL_MACHINE\Software\Novell\Filr

17.4 Deleting Credentials

On Windows Vista or Windows 7:

  1. Click the Start icon, then click Control Panel.

  2. Click User Accounts and Family Safety > Credential Manager.

  3. Remove credentials beginning with Novell.Collaboration.Filr.

On Windows XP:

  1. Click Start, then click Control Panel.

  2. Double-click User Accounts.

  3. Click the user account that you are logged in as.

  4. Click Manage my network passwords.

  5. Remove credentials beginning with Novell.Collaboration.Filr.

17.5 Emptying the Trash

  1. After the Filr application, metadata, log files, and credentials have been deleted, empty the trash (double-click the Trash icon, then click Empty the Recycle Bin).

18.0 Known Issues

For a list of known issues, see the Novell Filr Desktop Application Readme.

19.0 Legal Notices

Copyright © 2013-2014 Novell, Inc. All rights reserved. No part of this publication may be reproduced, photocopied, stored on a retrieval system, or transmitted without the express written consent of the publisher. For Novell trademarks, see the Novell Trademark and Service Mark list. All third-party trademarks are the property of their respective owners.
